Float glass cutting
Monolithic GLASS CUTTING
Breaking tables

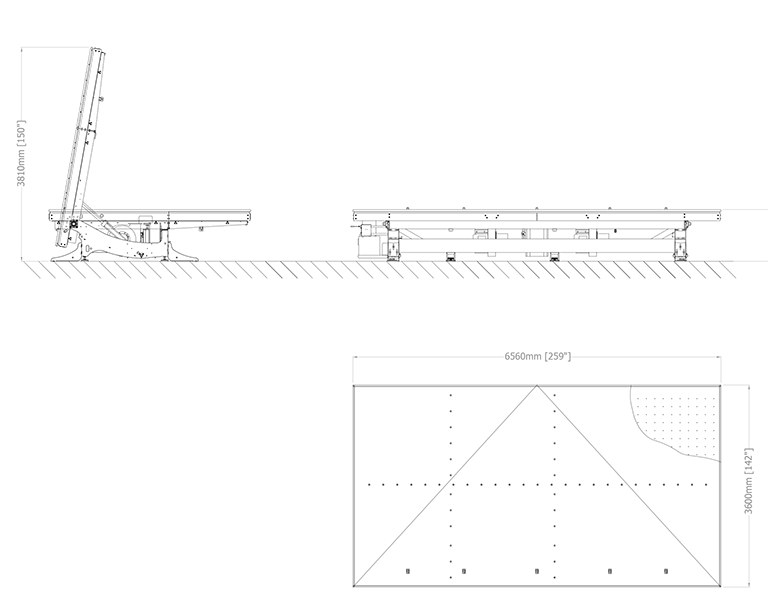

MT-300 | MT-500 | MT-600
Useful area: 3.920 x 2.800 mm (154,3” x 110,2”)
5.320 x 3.840 mm (209,4” x 151,2”)
6.650 x 3.840 mm (261,8” x 151,2”)
5.320 x 3.840 mm (209,4” x 151,2”)
6.650 x 3.840 mm (261,8” x 151,2”)
Loading system: Tilting
Breaking units: 1Long. + 1Trans.
1Long. + 2Trans.
1Long. + 2Trans.

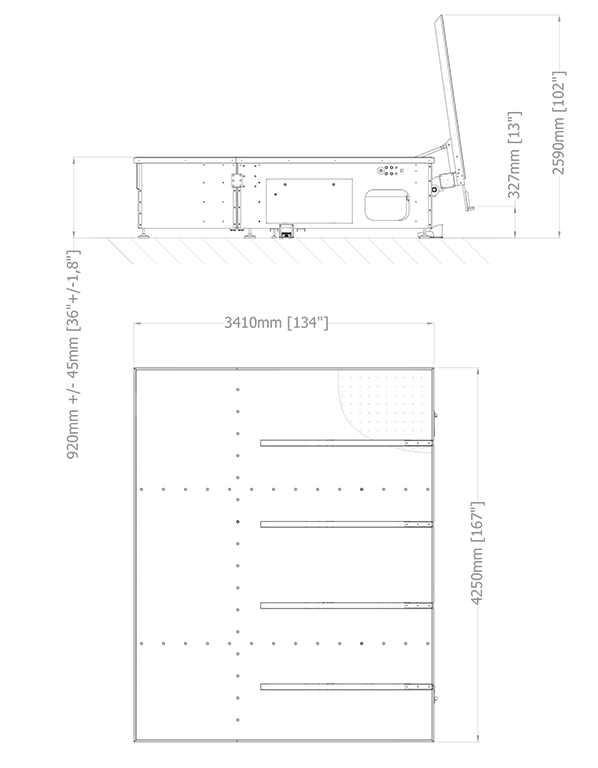

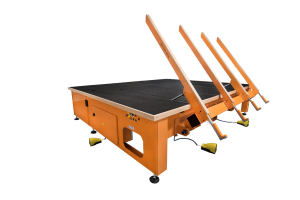

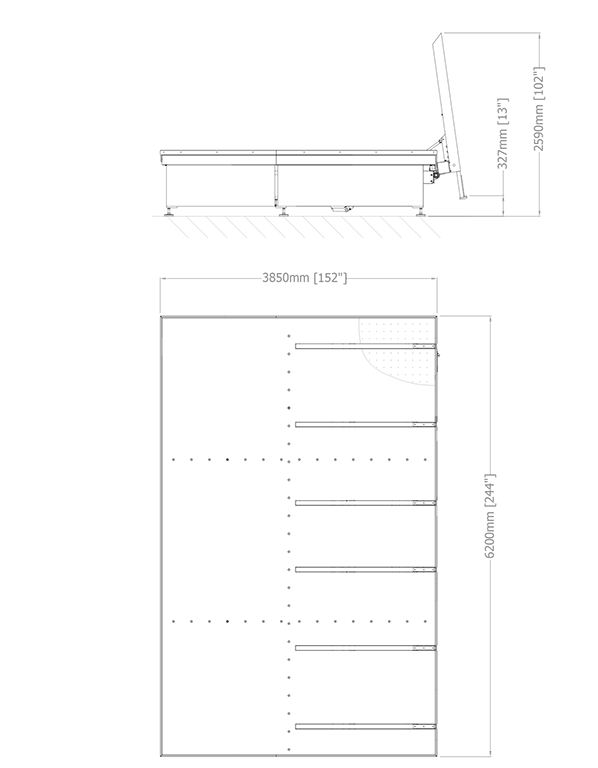

MT-300B | MT-600B
Useful area: 4.365 x 3.380 mm (171,8” x 133,1”)
6.200 x 3.850 mm (244,1” x 151,6”)
6.200 x 3.850 mm (244,1” x 151,6”)
Loading system: Arms
Breaking units: 1Long. + 1Trans.
1Long. + 2Trans.
1Long. + 2Trans.

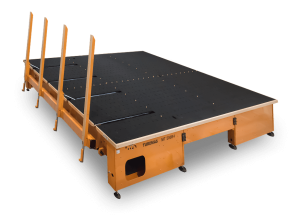

MT-500B4 | MT-600B4
Useful area: 5700 x 4085 mm (224.4” x 155.5”) 6700 x 4085 mm (263.8” x 155.5”)
Loading system: Arms
Breaking units: 1Long. + 1Trans.
1Long. + 2Trans.
1Long. + 2Trans.
Technical specifications
| Models | Useful area | Weight | Consumption | Loading system | Breaking units | Separation stops in the vertical position | Working height |
|---|---|---|---|---|---|---|---|
| MT-300 | 3.920 x 2.800 mm (154,3” x 110,2”) | 1.200 kg (2.645 lb) | 5 kW 9 kW | Tilting | 1Long. + 1 Trans. 1Long. + 2 Trans. | 2 3 | 920 mm +/- 45 mm (36,6” +/- 1,8”) |
| MT-500 | 5.320 x 3.840 mm (209,4” x 151,2”) | 2.700 kg (5.952 lb) | 5 kW 9 kW | Arms | 1Long. + 1 Trans. 1Long. + 2 Trans. | 2 3 | 920 mm +/- 45 mm (36,6” +/- 1,8”) |
| MT-600 | 6.650 x 3.840 mm (261,8” x 151,2”) | 2.900 kg (6.393 lb) | 5 kW 9 kW | Arms | 1Long. + 1 Trans. 1Long. + 2 Trans. | 2 3 | 920 mm +/- 45 mm (36,6” +/- 1,8”) |
| MT-300B | 4.365 x 3.380 mm (171,8” x 133,1”) 6.200 x 3.850 mm (244,1” x 151,6”) | 1.700 kg (3.747 lb) 3.400 kg (7.495 lb) | 5 kW 9 kW | Arms | 1Long. + 1 Trans. 1Long. + 2 Trans. | - - | 920 mm +/- 45 mm (36,6” +/- 1,8”) |
| MT-600B | 4.365 x 3.380 mm (171,8” x 133,1”) 6.200 x 3.850 mm (244,1” x 151,6”) | 1.700 kg (3.747 lb) 3.400 kg (7.495 lb) | 5 kW 9 kW | Arms | 1Long. + 1 Trans. 1Long. + 2 Trans. | - - | 920 mm +/- 45 mm (36,6” +/- 1,8”) |
| MT-500B4 | 4.365 x 3.380 mm (171,8” x 133,1”) 6.200 x 3.850 mm (244,1” x 151,6”) | 1.700 kg (3.747 lb) 3.400 kg (7.495 lb) | 5 kW 9 kW | Arms | 1Long. + 1 Trans. 1Long. + 2 Trans. | - - | 920 mm +/- 45 mm (36,6” +/- 1,8”) |
| MT-600B4 | 4.365 x 3.380 mm (171,8” x 133,1”) 6.200 x 3.850 mm (244,1” x 151,6”) | 1.700 kg (3.747 lb) 3.400 kg (7.495 lb) | 5 kW 9 kW | Arms | 1Long. + 1 Trans. 1Long. + 2 Trans. | - - | 920 mm +/- 45 mm (36,6” +/- 1,8”) |
Typical configurations Breaking tables
LAYOUT 1
LAYOUT 2
All our breaking tables feature...
Optimised air cushion
Aluminium table surface
Ideal complement for RUBI and LAM Series
Tilting, arm or suction cup loading systems
Optimised cutting system
Anti-slip transport belts
Centralised drive system
Maintains consistent glass edge quality after cutting
