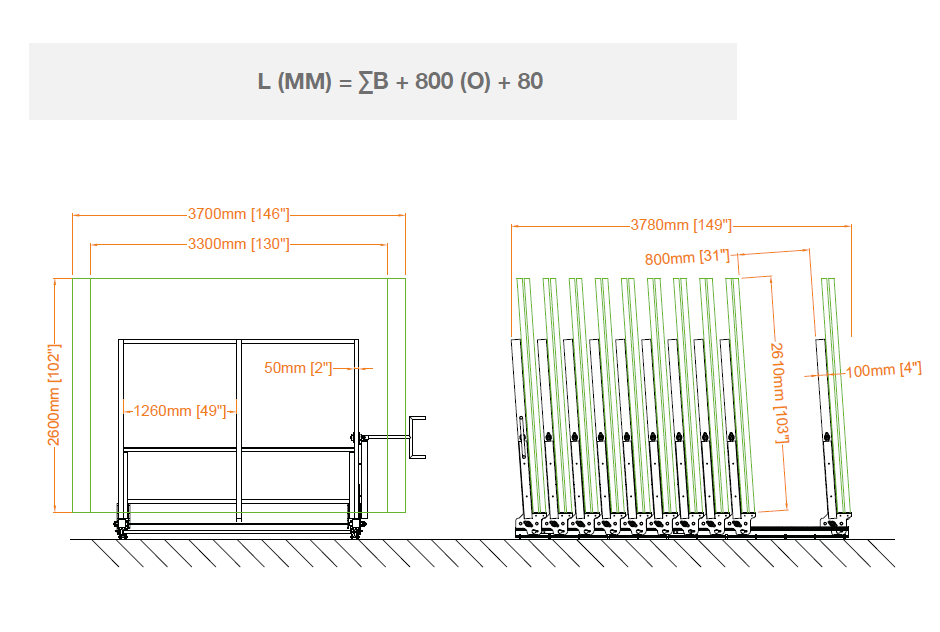

LAYOUT 1
Float glass cutting
Storage and manual loading
SC-03M Manual
Manual storage system with crank handle that provides smooth and safe movements. It allows multiple support configurations, improves daily handling and reduces wear. As it does not require electrical power, it is a cost-effective, practical and low-maintenance solution.
- Maximum Glass Size: 3.300 x 2.600 mm (96” x 108”)
- Minimum Piece (Width): 1.390 mm (54,72”)
- Inclination: 4º
- Support Height: 310 ± 10 (13,89”)
- Aisle Width: 800 mm (31,49”)
SC-03M Technical Specifications Manual
| Models | A | Capacity | B |
|---|---|---|---|
| SC-03M-100 | 100 mm (3,93”) | 1.500 kg (3.306,93 lb) | 290 mm (11,42”) |
| SC-03M-150 | 150 mm (5,91”) | 2.000 kg (4.409,24 lb) | 290 mm (11,42”) |
| SC-03M-200 | 200 mm (7,87”) | 3.500 kg (7.716,18 lb) | 315 mm (12,40”) |
| SC-03M-250 | 250 mm (9,84”) | 4.500 kg (9.920,80 lb) | 365 mm (14,37”) |
| SC-03M-300 | 300 mm (11,81”) | 5.500 kg (12.125,42 lb) | 415 mm (16,34”) |
| SC-03M-350 | 350 mm (13,78”) | 6.500 kg (14.330,05 lb) | 465 mm (18,31”) |
| SC-03M-400 | 400 mm (15,75”) | 7.500 kg (16.534,67 lb) | 515 mm (20,28”) |
Standard configurations
SC-03M Manual

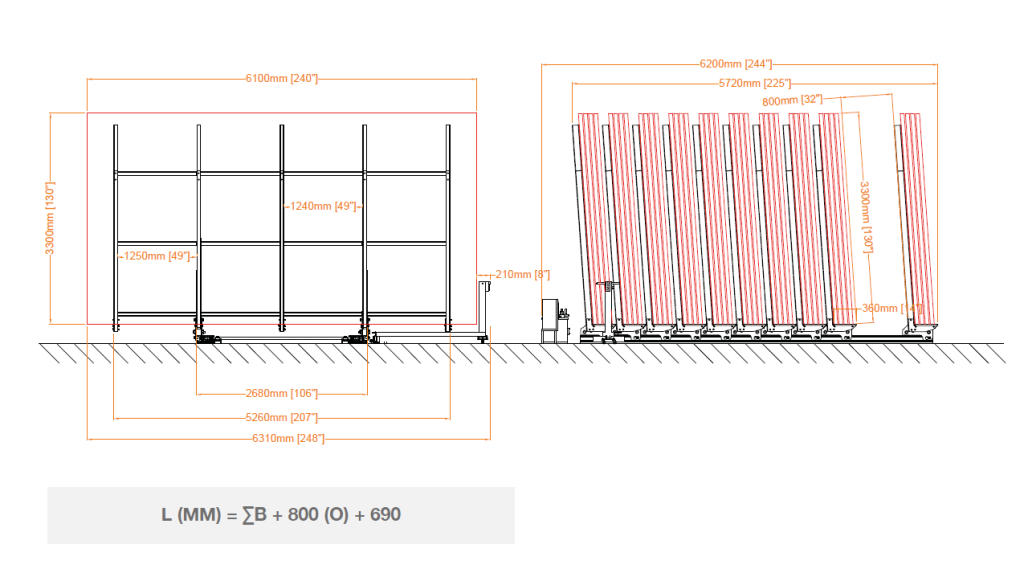

LAYOUT 2

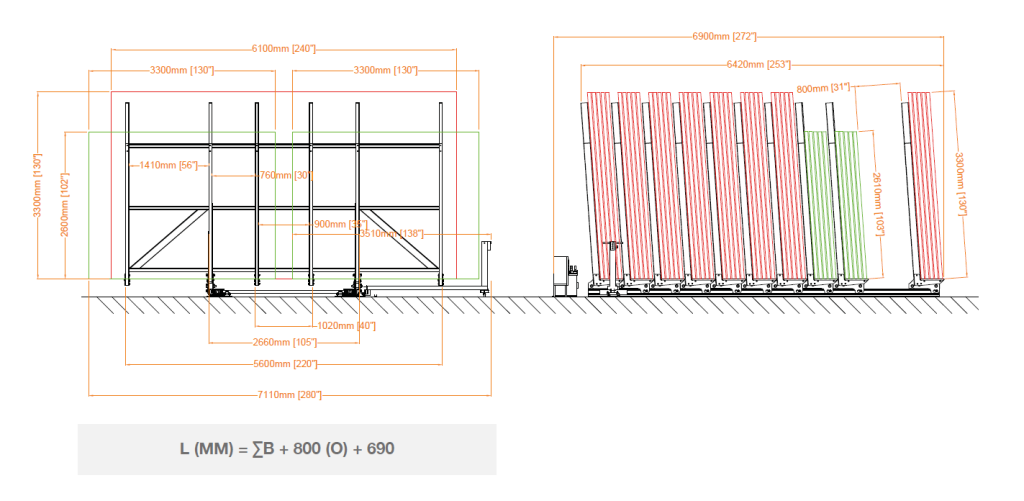

LAYOUT 3

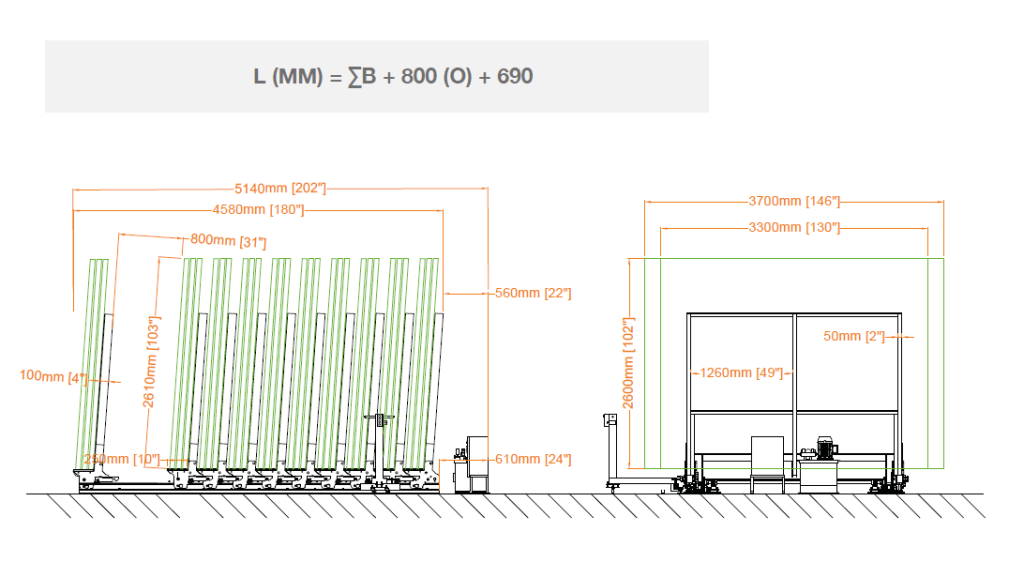

LAYOUT 4
All our manual storage machines have...
Structural design
Customised load capacity
Coating of the bases
Heavy-duty guides.
Easy access to each sheet.
Versatility and efficiency
Advanced solutions for professionals
Why Turomas?
High quality
Optimised structural design for exceptional performance and reliability.
Software for Industry 4.0
Optimises processes, connects teams and improves efficiency in real time.
Personalisation
Support and maintenance services, including spare parts, remote support, certified technical service and after-hours support.
100% European manufacture
Quality and precision guaranteed with 100% European manufacturing.
Optimum performance
Precision engineered with high-quality materials for optimum performance.
Request the technical data sheet
SC-03M Manual
