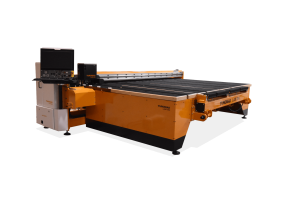

| LAM 300 | Minimum cutting depth | Maximum square measurement | Minimum squared measurement | Min/max PVB thickness | Thickness of the monolithic glass | Air conditioning in the electrical panel | Minimum cut length | Minimum spacing | Hydraulic arms (capacity) | Precision | Weight | Consumption | Air consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LAM 304 | 240 mm (9.45”)* | 2500 mm (98.43”) | 0 mm | Max: 4.56 mm (0,18”) Min: 0,38 mm (0.01”) | Max: 19 mm (0,75”) Min: 2 mm (0,08”) | OK | 120 mm (4.72”) | 120 mm (4.72”) | 3 (450 kg - 992 lb)) | ± 0.5 mm (± 0.02”) | 3300 kg (7275 lb) | 15 kW | 110 l/min |
