Float glass cutting
float GLASS CUTTING TABLES

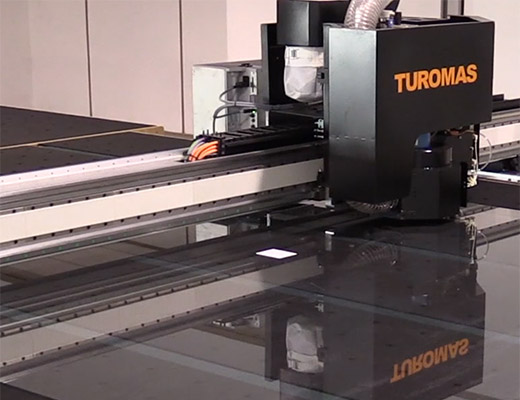

RUBI 513C

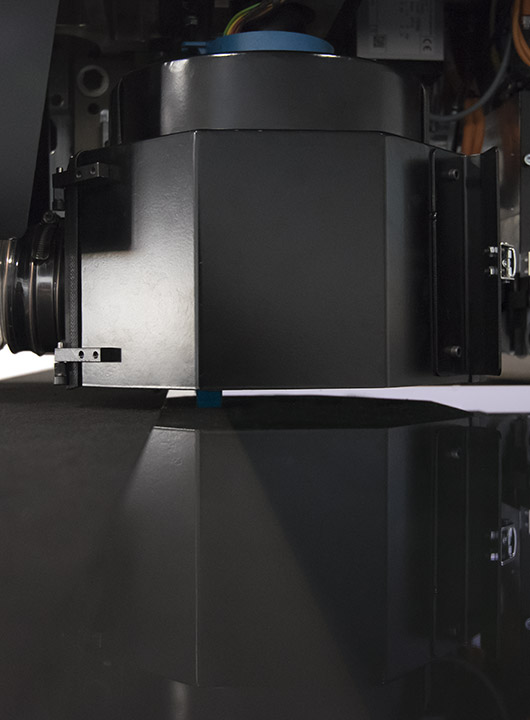

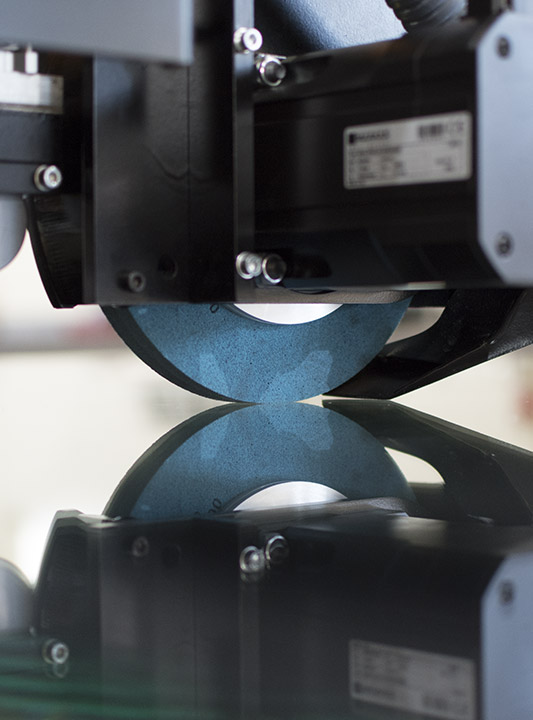

The RUBI 513C is designed for companies requiring maximum productivity, precision and automation in their processes. This model provides companies with the most advanced technology on the market, designed to meet the most demanding standards. Prepared for integration into automatic cutting lines, it features next-generation linear motors that ensure exceptional performance and superior quality in cutting, Low-E or TPF coating removal, and piece labelling operations, with longitudinal glass entry, automatic loading system, automatic positioning, automatic unloading and a maximum cutting size of 4000 x 2800 mm.
- Maximum speed: 310 m/min
- Maximum acceleration: 19 m/s2
- Glass thickness: De 0.55mm* a 25mm
- Precision: ±0,10 mm (0,004”)
- Drive system: Linear Motors
Technical specifications RUBI 500 Series
| RUBI | Max. speed | Max. Acceleration | Glass thickness | Precision | Drive system | Entrance | Loading | Positioning | Evacuation | Max. cutting size | Cut-off saws | Weight | Air consumption | Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RUBI 513C | 310 m/min | 19 m/s² | 1,8-25mm (0,07"-1") | ± 0,10 mm (±0,004") | Rotary motors | Longitudinal | Automatic | Automatic | Automatic | 4000 x 2800 mm (157.5” x 110.2”) | No | 3500 kg (7716 lb) | 10 l/min | 8 kW |
| RUBI 513VAC-6 | 310 m/min | 19 m/s² | 1,8-25mm (0,07"-1") | ± 0,10 mm (±0,004") | Rotary motors | Transverse | Suction Cups/Automatic | Automatic | Automatic | 4000 x 2800 mm (157.5” x 110.2”) | No | 6400 kg (14109 lb) | 10 l/min | 8 kW |
| RUBI 516C | 310 m/min | 19 m/s² | 1,8-25mm (0,07"-1") | ± 0,10 mm (±0,004") | Rotary motors | Longitudinal | Automatic | Automatic | Automatic | 6100 x 3300 mm (241” x 130”) | No | 5800 kg (12786 lb) | 10 l/min | 11 kW |
| RUBI 516AC | 310 m/min | 19 m/s² | 1,8-25mm (0,07"-1") | ± 0,10 mm (±0,004") | Rotary motors | Longitudinal | Automatic | Automatic | Automatic | 6100 x 3300 mm (241” x 130”) | No | 6000 kg (13227 lb) | 10 l/min | 11 kW |
| RUBI 517C | 310 m/min | 19 m/s² | 1,8-25mm (0,07"-1") | ± 0,10 mm (±0,004") | Rotary motors | Longitudinal | Automatic | Automatic | Automatic | 7100 x 3300 mm (279” x 130”) | No | 6000 kg (13227 lb) | 10 l/min | 15 Kw |
Typical layouts
RUBI 500
LAYOUT 2
LAYOUT 3
LAYOUT 4
LAYOUT 5
LAYOUT 6
LAYOUT 7
LAYOUT 8
LAYOUT 9
LAYOUT 10

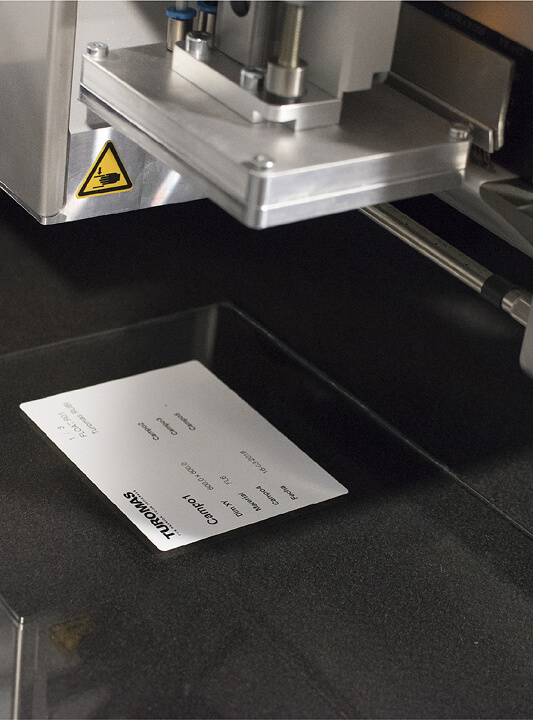

Optional
Characteristics
RUBI 500

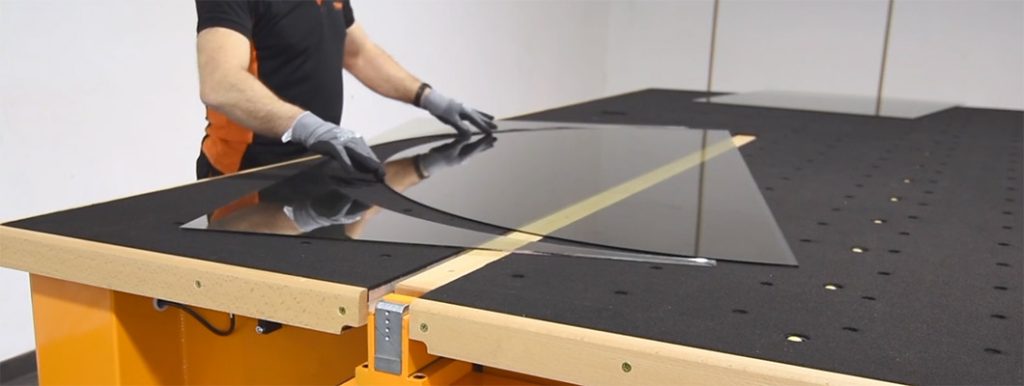

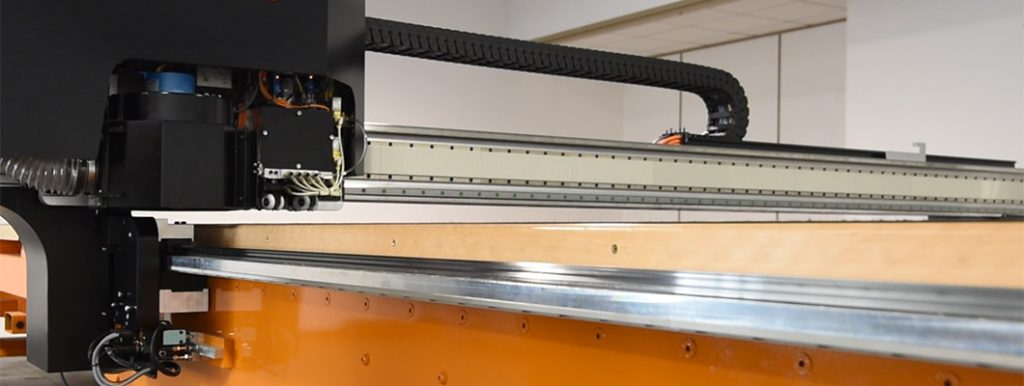

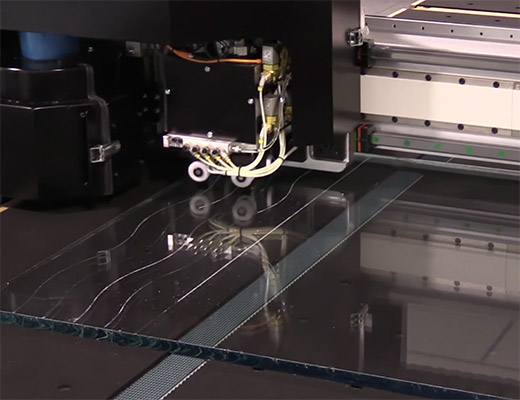

Gallery
