LAYOUT 1
Float glass cutting
LOADING TABLES
MC-300B | MC-600B
TUROMAS arm loading and unloading tables offer reliable and compact solutions for limited spaces, while providing autonomy and versatility to the cutting line.
- Weight: 1,100 kg (2,452 lb)
- Weight: 4,000 kg (8,818 lb)
- Consumption: 6 kW
- Consumption: 9 kW
- Loading system: Arms
- Working height: 920 mm +/- 45mm (36.6"+/-1.8")
Technical specifications MC 300B | MC 600B
| Models | Usable area | Weight | Consumption | Charging system | Vertical spacer blocks | Working height |
|---|---|---|---|---|---|---|
| MC-300B | 4.365 x 3.380 mm (171,8" x 133,1") | 1.100 kg (2.425lb) | 6 kW | 4 Arms | Manual | 920mm +/- 45mm (36,6" +/- 1,8") |
| MC-600B | 6.200 x 3.850 mm (244,1" x 151,6") | 4.000 kg (8.818 lb) | 9 kW | 6 Arms | Manual | 920mm +/- 45mm (36,6" +/- 1,8") |

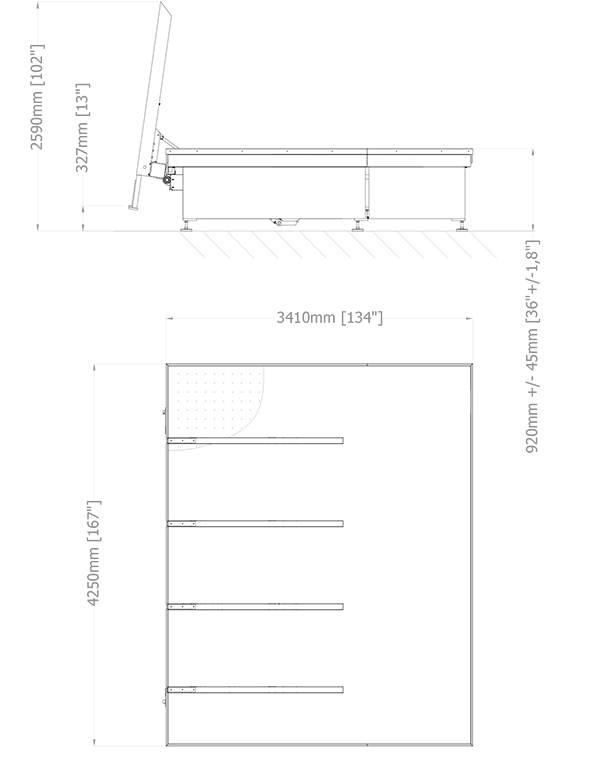

Typical layouts
MC 300B | MC 600B
All our loading tables have...
Optimised air mattress
Aluminium Panel
The perfect complement to the RUBI and LAM Series
Tilting, arm or suction cup loading systems
Optimised cutting system
Non-slip carrying straps
Centralised control
Ensures consistent quality along the edges of the glass after cutting
Advanced solutions for professionals
Why Turomas?
High quality
Optimised structural design for exceptional performance and reliability.
Software for Industry 4.0
Optimises processes, connects teams and improves efficiency in real time.
Personalisation
Support and maintenance services, including spare parts, remote support, certified technical service and after-hours support.
100% European manufacture
Quality and precision guaranteed with 100% European manufacturing.
Optimum performance
Precision engineered with high-quality materials for optimum performance.
Our passion, your progress
We advise you
Support and maintenance services, including spare parts, remote support, certified technical service and after-hours support.
Request the technical data sheet
