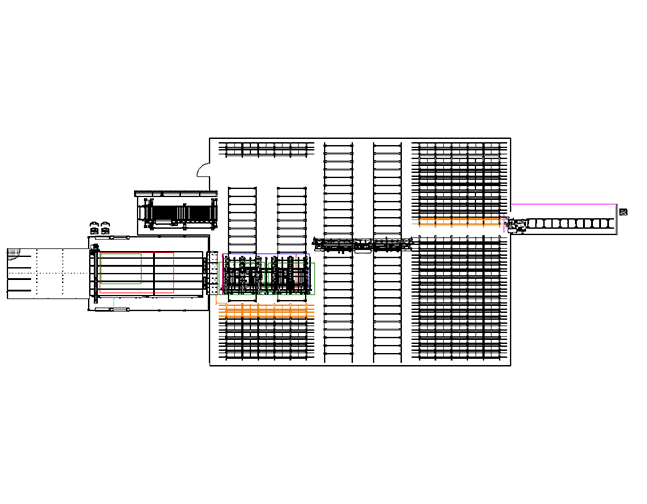

LAYOUT 1
Float glass cutting
Automatic smart storage
SG Intelligent storage
TUROMAS SaveGlass allows remnants to be stored safely without risk of damage, with precise knowledge of their location, dimensions and glass type for subsequent use in optimisation processes. It can operate independently or integrated with any TUROMAS automated loader (SR or LA).
SG-04
Glass thickness: 1,8-25 mm (0,07”-1”)
Maximum Glass Size: 4100 x 3300/3660 mm (240” x 130/144”)

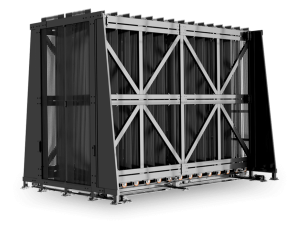

SG-05
Glass thickness: 1,8-25 mm (0,07”-1”)
Maximum Glass Size: 5100 x 3300/3660 mm (240” x 130/144”)
SG-06
Glass thickness: 1,8-25 mm (0,07”-1”)
Maximum Glass Size: 6100 x 3300/3660 mm (240” x 130/144”)
Technical specifications SG Intelligent storage
| SG | Consumption | Air consumption | Current | Minimum Cycle Time | Glass thickness | Maximum load | Maximum Glass Size | Minimum Glass Size | Speed | Acceleration |
|---|---|---|---|---|---|---|---|---|---|---|
| SG-04 | 10 kW | 20 l/min | 10A | - | 1,8-25 mm (0,07”-1”) | - | 4100 x 3300/3660 mm (240” x 130/144”) | 1500 x 1000 mm (59” x 39”) | - | - |
| SG-05 | 10 kW | 20 l/min | 10A | - | 1,8-25 mm (0,07”-1”) | - | 5100 x 3300/3660 mm (240” x 130/144”) | 1500 x 1000 mm (59” x 39”) | - | - |
| SG-06 | 10 kW | 20 l/min | 10A | - | 1,8-25 mm (0,07”-1”) | - | 6100 x 3300/3660 mm (240” x 130/144”) | 1500 x 1000 mm (59” x 39”) | - | - |
Typical layouts
SG Intelligent storage

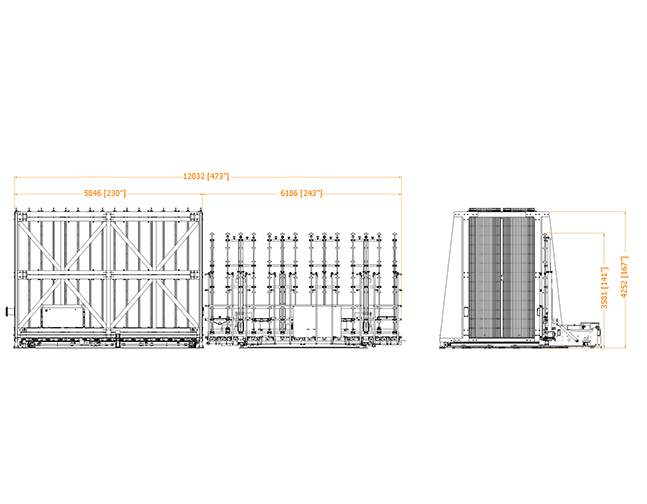

LAYOUT 2
All our automated intelligent storage machines feature…

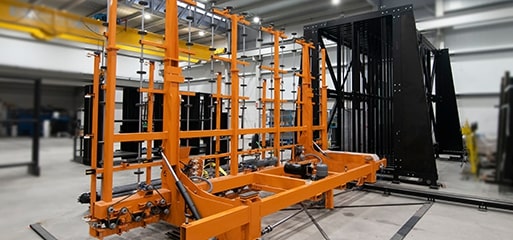

Integration within other intelligent storage systems

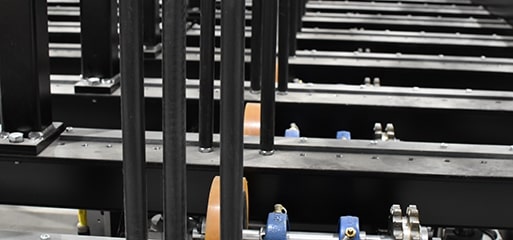

Automatic linear movement of remnants
Storage for full sheets

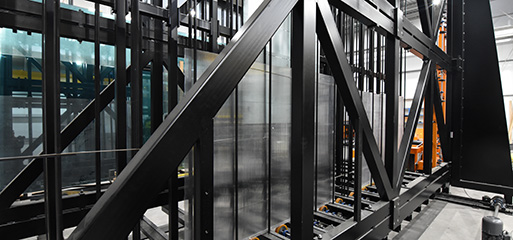

High performance and reliability
