Float glass cutting
float GLASS CUTTING TABLE

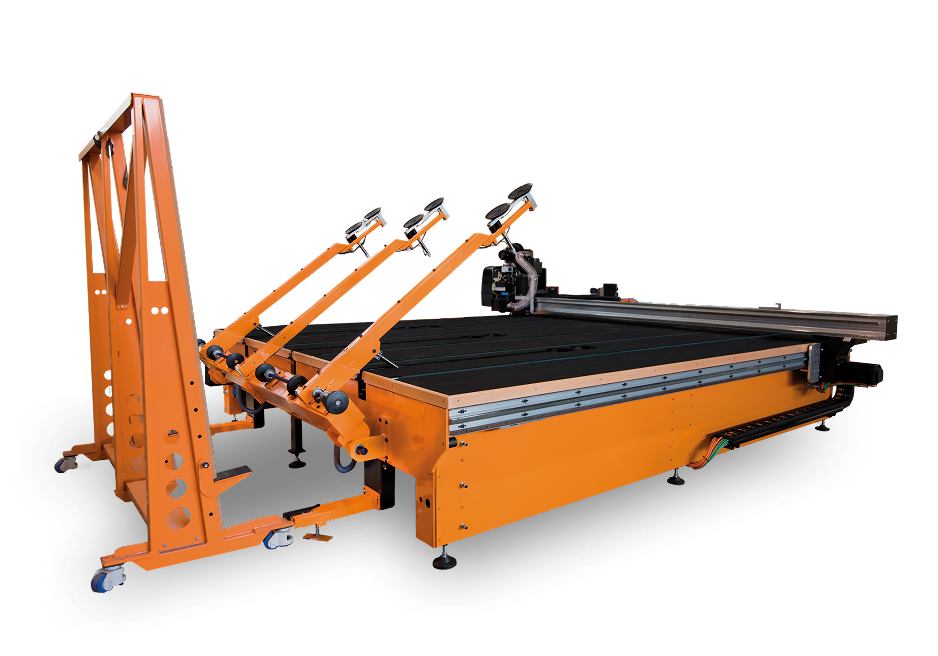

RUBI 403VA
The RUBI 403VA is designed for companies seeking high productivity and automation, featuring transverse glass entry, automatic suction cup loading system, automatic positioning and automatic unloading. It is designed to cut glass of any thickness, remove Low-E or TPF coatings, and label each piece, ensuring high performance and cutting quality.
- Maximum speed: 220 m/min
- Maximum acceleration: 17 m/s2
- Glass thickness: De 0.55mm* a 25mm
- Precision: ± 0,15 mm (± 0,006”)
- Drive system: Rotary motors
Technical specifications RUBI 400 Series
| RUBI | Max. speed | Max. Acceleration | Glass thickness | Precision | Drive system | Entrance | Loading | Positioning | Evacuation | Max. cutting size | Cut-off saws | Weight | Air consumption | Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RUBI 403VA | 220 m/min | 17 m/s² | 1,8-25 mm (0,07”-1”) | ± 0,15 mm (± 0,006”) | Rotary motors | Transverse | Suction Cups/Automatic | Automatic | Automatic | 3700 x 2600 mm (146” x 103”) | NO | 3800 kg (8377 lb) | 10 l/min | 11 kW |
| RUBI 403C | 220 m/min | 17 m/s² | 1,8-25 mm (0,07”-1”) | ± 0,15 mm (± 0,006”) | Rotary motors | Longitudinal | Automatic | Automatic | Automatic | 3700 x 2600 mm (146” x 103”) | NO | 3500 kg (7716 lb) | 10 l/min | 11 kW |
| RUBI 403VAC-6 | 220 m/min | 17 m/s² | 1,8-25 mm (0,07”-1”) | ± 0,15 mm (± 0,006”) | Rotary motors | Transverse | Suction Cups/Automatic | Automatic | Automatic | 3700 x 2600 mm (146” x 103”) | NO | 6300 kg (13889 lb) | 10 l/min | 11 kW |
| RUBI 405C | 220 m/min | 17 m/s² | 1,8-25 mm (0,07”-1”) | ± 0,15 mm (± 0,006”) | Rotary motors | Longitudinal | Automatic | Automatic | Automatic | 5300 x 3300 mm (208” x 130”) | NO | 6400 kg (14109 lb) | 10 l/min | 11 kW |
| RUBI 406VA | 220 m/min | 17 m/s² | 1,8-25 mm (0,07”-1”) | ± 0,15 mm (± 0,006”) | Rotary motors | Transverse | Automatic | Automatic | Automatic | 6100 x 3300 mm (241” x 130”) | NO | 6300 kg (13889 lb) | 10 l/min | 11 kW |
| RUBI 406C | 220 m/min | 17 m/s² | 1,8-25 mm (0,07”-1”) | ± 0,15 mm (± 0,006”) | Rotary motors | Longitudinal | Automatic | Automatic | Automatic | 6100 x 3300 mm (241” x 130”) | NO | 5800 kg (12786 lb) | 10 l/min | 11 kW |
| RUBI 406AC | 220 m/min | 17 m/s² | 1,8-25 mm (0,07”-1”) | ± 0,15 mm (± 0,006”) | Rotary motors | Longitudinal | Automatic | Automatic | Automatic | 6100 x 3300 mm (241” x 130”) | NO | 6000 kg (1322 lb) | 10 l/min | 11 kW |
Typical layouts
RUBI 400
LAYOUT 2
LAYOUT 3
LAYOUT 4
LAYOUT 5
LAYOUT 6
LAYOUT 7
LAYOUT 8
LAYOUT 9
LAYOUT 10
LAYOUT 11
LAYOUT 12
LAYOUT 13
LAYOUT 14
All our float cutting machines feature...
Gantry Transmission System
Cutting Head with 4 Tools
Optimized Air Cushion System enabling manual glass movement across the table
Advanced Planarity TFS System
Aluminium Table Surface
Minimizes air cushion losses
Electronic Glass Squaring
Automatic Thickness Detection
Automatic Cutting Pressure Adjustment
Cutting Bridge with Guides on Both Sides
Self-Orienting Scoring Wheel Cutting Head
Automatic Offcut Size Detection
Laminated Glass Cutting Capability
Template Scanner
Vinyl Cutting
Ceramic Material Cutting
Shape Cutting
Advanced Shape Editor
Compatibility with Leading Software on the Market
Dual Oil Reservoir
Optional
