SC-06SA Semiautomatic
Rack-type storage system with semi-automatic opening operated via a manual control that activates a hydraulic system. Its modular design allows adjustment of the support bases between 200 and 400 mm and accommodates glass sizes up to 6,100 × 3,300 mm.
The assisted opening facilitates handling, reduces operator effort and protects the material through smooth and safe movements.
- Maximum Glass Size: 6100 x 3300 mm - 240” x 130”
- Minimum Piece Width: 880 mm - 35”
- Support Height: 310 mm ±10 - 13.89”
- Aisle Width: 800 mm - 31,49”
- Inclination: 4º
Technical specifications

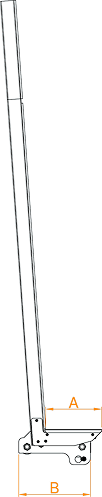

| Models | A | Capacity | B |
|---|---|---|---|
| SC-06SA-200 | 200 mm - 7,87" | 8000 kg - 17636,98 lb | 321 mm - 12,64" |
| SC-06SA-250 | 250 mm - 9,84" | 10000 kg - 22050 lb | 371 mm - 14,61" |
| SC-06SA-300 | 300 mm - 11,81" | 12000 kg - 26455,47 lb | 421 mm - 16,57" |
| SC-06SA-350 | 350 mm- 13,78" | 14000 kg - 30865 lb | 471 mm - 18,54" |
| SC-06SA-400 | 400 mm - 15,75" | 16000 kg - 35275 lb | 521 mm - 20,51" |
All our manual storage machines have...

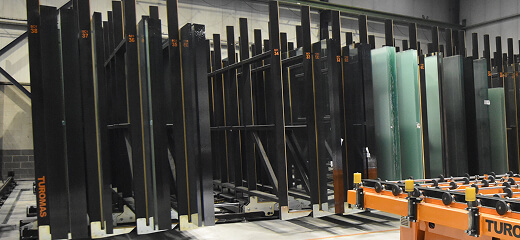

Structural design

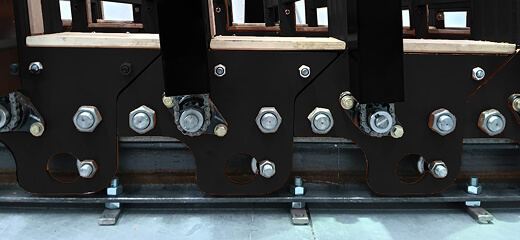

Customised load capacity

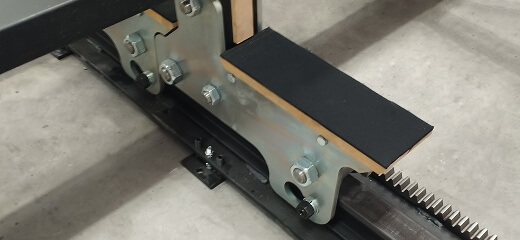

Coating of the bases

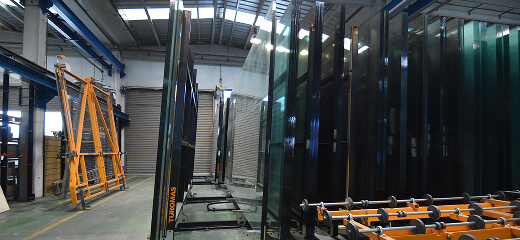

Heavy-duty guides.

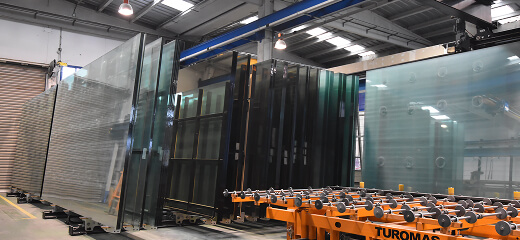

Easy access to each sheet.

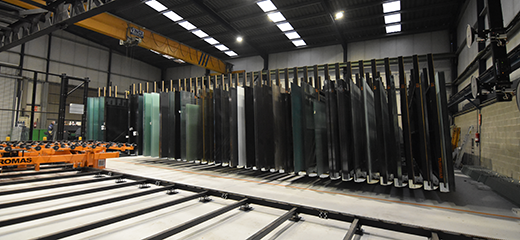

Versatility and efficiency
Advanced solutions for professionals
Why Turomas?
High quality
Optimised structural design for exceptional performance and reliability.
Software for Industry 4.0
Optimises processes, connects teams and improves efficiency in real time.
Personalisation
Support and maintenance services, including spare parts, remote support, certified technical service and after-hours support.
100% European manufacture
Quality and precision guaranteed with 100% European manufacturing.
Optimum performance
Precision engineered with high-quality materials for optimum performance.
